Another interesting MP-44 style rifle

A friend of gun lab sent these series of pictures of an MP-44 under folder rifle. I don’t have much to say about it other then it looks very interesting and I would like to have one.

A couple of pictures of the rifle with the stock extended.

This is one with the stock closed.

The safety on the rifle

A good view of the trigger group and selector

Close up view of the selector and stock push button.

The rifle taken apart.

Close up of the pistol grip and recoil spring guide

A view of the gas piston

the front sight and gas block

Another view of the gas block

It is an interesting rifle to say the least. It is the rifle that they should have had for the paratroopers.

Master Cam video of machining the VG1-5

In this video we are showing the steps to do the first op on machining the upper receiver on the VG1-5 on the machining center.

We are getting closer every day to completing the VG1-5.

Another update for the cnc router

Well all the missing components arrived for the new cnc router controller. And it is time to start assembling the new system.

This is an over view of all the components as assembled on the 20×20 steel plate.

A close up of the servo motor controllers

A look at both power supplies and the terminal blocks.

A look at the second power supply and relays

All the terminal blocks installed and ready for wiring

The interface with the computer

As it looks today with the tool box for special tools, collets, end mills and measuring and touch off tools.

I will start wiring this machine up this weekend.

Just for everyone that thinks that it is always sunny in Arizona. This was the view tonight.

VG1-5 update on the bolts

We bought this tool from Shars to allow use to hole the jaws in proper position the cut the proper diameter in the jaws for the bolt.

Once set up the bolts were turned and we were off performing op 1 on the bolts.

The first op turned the minor diameter of the bolt, faced the bolt and drilled it for the firing pin.

The second operation again turned for minor diameter, faced the bolt, and drilled the hole for the firing pin to be inserted. In addition the major diameter was turned.

Test bolts were made to set up each operation in the lathe and for the additional operations in the mill,

All test bolts were marked with double “x’s” on both sides. This prevents confusion later.

With all the bolts completed for the first two operations it is not off for the third operation.

With the third op we go to the manual lathe to cut the firing pin hole to the correct diameter and depth with a square shoulder on the bottom. This allows the firing pin spring to set flat.

With the end mill dialed in it is just a matter using the dro’s to go to the correct depth.

VG1-5 update on the upper receivers

The process of making the upper receiver has been slightly changed from the first parts we made. We are doing the internal grooving on the cnc lathe. After programming the lathe the first thing to do is test the program and inspect the groves as cut. This is one of the test pieces we made to perform this task.

To get to this point we needed to order and get in an adapter to allow us to cut the lathe chuck jaws to the proper diameter. This is the tool that allowed us to accomplish that task.

With the jaws cut to the proper size it is time to get started

The part is sized to the correct length and grooved to the proper diameter for the bolt then the outside diameter is cut.

Once this is completed the part is turned and then the front barrel support groves are cut in and once again the out side diameter is turned.

The upper receivers are now ready for the next op.

Looking for an article

I am looking for an article that was written in 1946. The title is “German Mass Production Methods: The use of stamped components in gun manufacture” It was written by Charles E. Balleisen and published in Army Ordnance September-October 1946.

Thank you for your help

Installing the magazine well on the VG1-5

The last two video’s showed spot welding and the first op machining for the VG1-5 lower receiver. With this video we are installing the magazine housing into the receiver. Once again there is a certain amount of hand fitting.

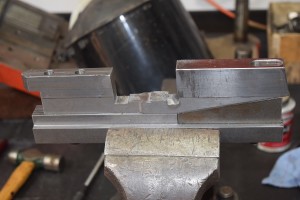

A close up of the fixture.

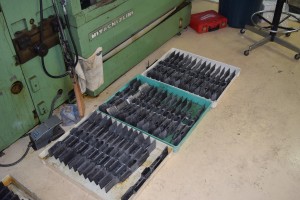

The batch ready for the next step.

Older gun making Italian style.

This video was taken at an Italian factory where they are working on Carcano’s and Revelli machine guns.

https://video.search.yahoo.com/video/play;_ylt=A2KIo9Uop.9VXzcA428snIlQ;_ylu=X3oDMTBzYjc0MWM5BHNlYwNzcgRzbGsDdmlkBHZ0aWQDBGdwb3MDMzk-?p=gunstock+making+machine&vid=fd97950ced4d59562eda07112d13cc56&turl=http%3A%2F%2Ftse3.mm.bing.net%2Fth%3Fid%3DWN.CXpnYuh%252ftLQZy%252bDfXVa%252f0Q%26pid%3D15.1%26h%3D168%26w%3D300%26c%3D7%26rs%3D1&rurl=https%3A%2F%2Fwww.youtube.com%2Fwatch%3Fv%3DgR29BrT8iyw&tit=Gun+turrets+machine+tooled+at+a+plant+in+Italy+HD+Stock+Footage&c=38&h=168&w=300&l=36&sigr=11bh00q7i&sigt=11vlg9pgd&sigi=12rr3t94c&age=1399590458&fr2=p%3As%2Cv%3Av&fr=yhs-mozilla-001&hsimp=yhs-001&hspart=mozilla&tt=b

Just a great deal of hand work

Working on the cnc router

You have seen the previous write posts about the cnc router. The table was not steady and had way to much movement. That was the first problem corrected. Now we are on the way to correct the wiring and control circuits. The wiring as we received in the machine looked like two rats mating and dropping by products everywhere.

So first Plexiglas was cut and routed out for fans and filters.

This was completed the old fashion way, by hand tools.

Then they were mounted on the frame.

The new mounting plate was laid out and hole were drilled and tapped.

This too was accomplished the old fashion way,a ruler ,straight edge and square.

The rest of the components should be here this next week and I can finish up the new wiring.

More on the VG1-5

You have now seen the first series of spot welds necessary to put the strengthening plats in and putting then together. With this accomplished it is time to do the first machining op on the receiver. This operation cuts out the trigger opening and also the holes necessary to weld in the front barrel support. The magazine housing area is also machined out to the rough shape necessary to install it.
