Another update for the cnc router

Well all the missing components arrived for the new cnc router controller.  And it is time to start assembling the new system.

This is an over view of all the components as assembled on the 20×20 steel plate.

DSC_6614sA close up of the servo motor controllers

DSC_6618sA  look at both power supplies and the terminal blocks.

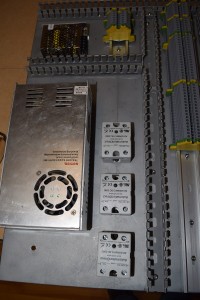

DSC_6616sA look at the second power supply and relays

DSC_6620s

All the terminal blocks installed and ready for wiring

DSC_6619s



The interface with the computer

DSC_6621sAs it looks today with the tool box for special tools, collets, end mills and measuring and touch off tools.

DSC_6622sI will start wiring this machine up this weekend.

Just for everyone that thinks that it is always sunny in Arizona. This was the view tonight.
