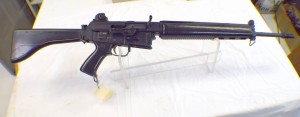

I am always interested in how weapons are made, a major reason for this site.  So when I had the opportunity to stop at a friends house on this last trip to look at components of the AR-180 in in various stages of manufacture I jumped on it. For those of you that do not know what a AR-180 is here are a couple of pictures.

DSC_2633c

DSC_2634cClose up of the receiver.

DSC_2640c

DSC_2635c



The Ar-180 is a gas operated multi-lug  sheet metal stamped  rifle. Eugene Stoner is one of the designer of it and it was design to be produced in countries that did not have a strong manufacturing sector. To me it is interesting to see the steps necessary to make this weapon. I don’t have all  pictures of the different stampings however there are enough to see how it is made.

So lets start with the lower receiver. This first set of pictures is the completed cut out flat prior to any press shaping.

DSC_2275s

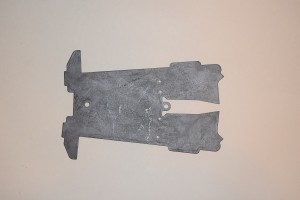

DSC_2274sBoth sides are  shown and you will notice that the slots are not cut for the fire control and magazine catch.

This next series of photos show the initial pressings that are put in for the magazine housing.

DSC_2278s

DSC_2276s

DSC_2281s

DSC_2280sStill no fire control or magazine release cut outs. There is a set or two missing between these photos and the next ones. This next set shows the body bent now.

DSC_2284s

DSC_2282s



DSC_2283sYou can see that flat had been pressed out for the fire control group of the AR-18. The hole for the selector and magazine release has not been put in yet and none of the holes for the fire control group have been punched or drilled. The holes on the bottom of the receiver have been punched though. No engraving has been performed and the front strengthening stamping has not been spot welded on.

this next series shows what is now looking close to a complete lower receiver. This is where it gets a little confusing. There are samples showing different states of completion. This leads me to think that the holes for the fire control group were drilled in and done on a fixture. These  next series of photos will show three different lowers some with holes and some without.

DSC_2294s

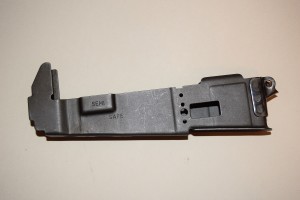

DSC_2296sYou can clearly see that the front strengthening stamping is installed but that the holes are not drilled yet.

DSC_2286s

DSC_2288s

DSC_2291sThese photos shows all the holes for the fire control group in the receiver and the front strengthening stamping located but not spot welded on yet.

DSC_2306s

DSC_2308s

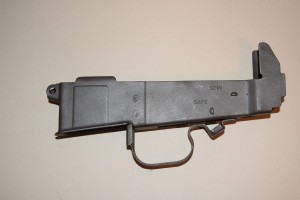

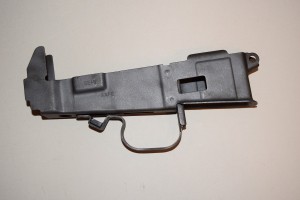

DSC_2307sThis series of photos shows the magazine guide welded into place and the trigger guard installed but the fire control holes not drilled yet. There is also no front strengthening support welded on yet.

Now there are a variety of answers for these differences. The first is that the AR-180 went through a number of changes as to design and manufacturing methods. The second is that samples were pulled from the line as example board production steps. The third is that they were manufacturing examples for the floor personnel. This concludes this portion. In the next installment I will show the upper receiver being made.
