Part 4: VG1-5 Rear Top Cover

We are going to take a short break from the lower receiver and do some work on the upper rear top cover. This piece is what holds the ejector in place and covers the rear of the upper receiver.  In the original rifle it also contained the fire control mechanism. Due to the changes that we made to the fire control system it is now installed in the lower receiver.

In the first model reproduction this piece was made with only a single rib.

first and second model top covers small

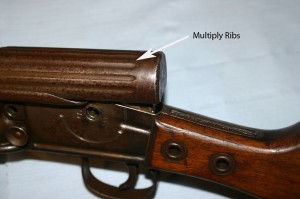

However in this model we are going back to the 7 rib design as in the original. I just think it looks better and more like the original.IMG_0194saThis is the story of making that pressing.

Pressing is an interesting art and science. While we do everything in solid works their sheet metal program is not actually designed for this type of work. A lot of steps were taken to get to the design that we wanted.

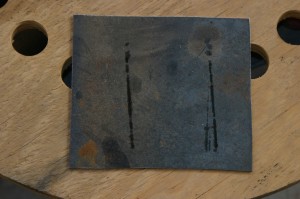

In this first picture is the basic sheet steel cut out that we started with to test the new stamping dies that we made for the pressing of the ribs.

basic 1 st model flatsThis is a far way from what the actual design will be when we stamp for the top cover.

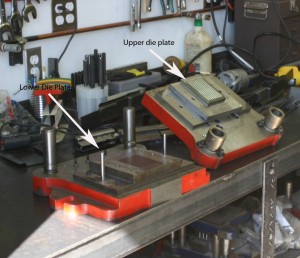

Here are a few pictures of the top cover rib stamping dies.

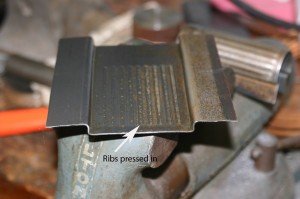

IMG_0007sIMG_0175saThis what the stamping will look like just out of the die.

IMG_0011sa

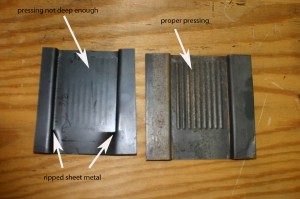

Nothing ever turns out as it suppose to during the first pressing. We had are share of up sets.IMG_0001 (4)written

With the rib design correct and the overall shape correct it was time to test out the next step. This is to bend it into the correct shape for the rear top cover.

This next series of pictures is the actual bending of the top cover. This series was to test the actual die out and before it was installed in a set of die plates.

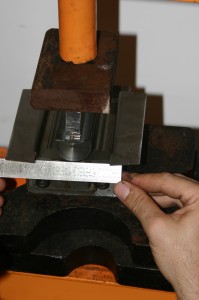

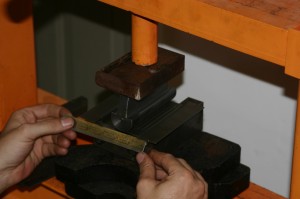

IMG_0001These two pictures deal with setting up the flats in the press dies by correctly placing it to bend it.

IMG_0002Once correctly located the pressing continues.

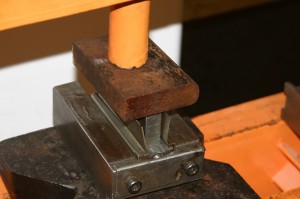

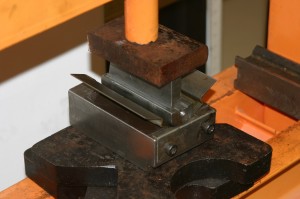

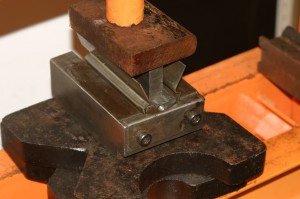

As a quick side not. The press used in this operation was a 20 ton from Harbor Freight.

IMG_0014 (2)s

IMG_0015s

IMG_0016s

IMG_0017s

IMG_0018s

IMG_0019s

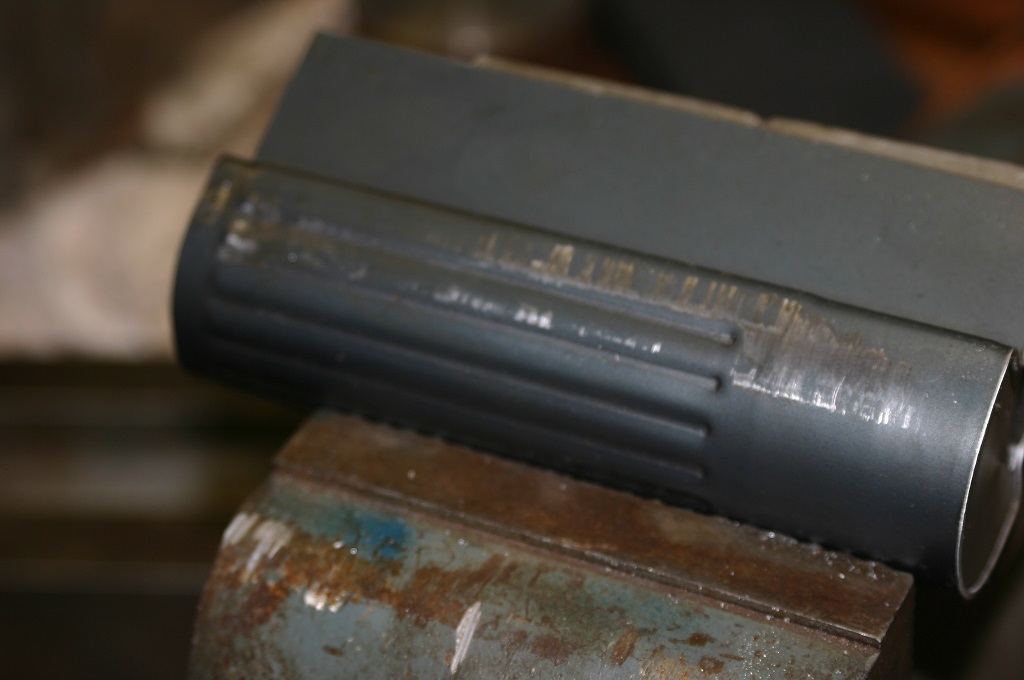

Once through this operation the flat will come out with a rounded shape.

IMG_0183s

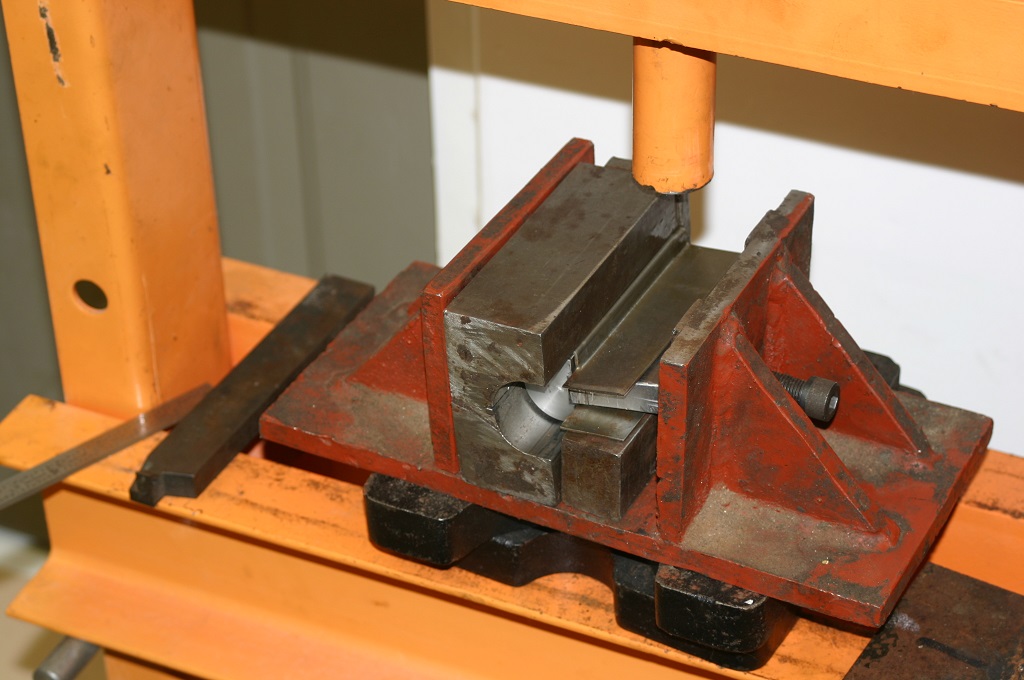

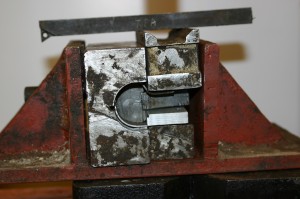

But the work does not stop there. Even though it has a basic shape it still needs to sharply defined. This next set of steps shows that being done.

IMG_0021

IMG_0044s

IMG_0046a

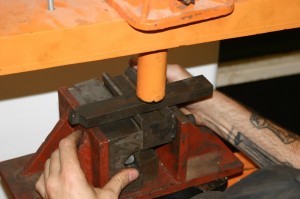

IMG_0024sYou will notice that several hits are done during this stage. This is to insure that the lower flange is pressed square for the entire stamping.

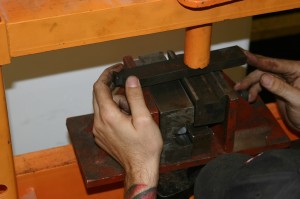

IMG_0023sNow that it is pressed tight it is taken out of the die and its support and this is what we have. Still a great deal of work to be done to it. In addition it is not quite the correct overall design.

IMG_0029

The next post will deal with more on the upper rear top cover. I hope you enjoyed this presentation so far.
