Wednesday More designing on the fluting press

We have finished what I think is the last of the designing work on the chamber fluting press. Next week after the die is off the HAAS machine we will start machining the individual components. So here is the final design.

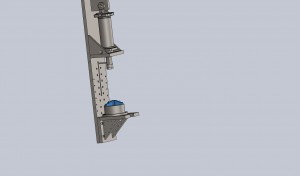

flutting machine final 2

flutting machine final 1

We added a guide rod to insure that the tool head will not move. We also now use 4 pins instead of three for the lower plate. This was necessary to add the slot for the guide rod. It will be exciting to complete this project and have it mounted and finishing the barrels.
